Built-in 40-120A MPPT charge controller (configurable) ensures max solar yield + faster ROI. DIP-switch adjustments for battery, AC input ranges etc.–adapt to regional specs effortlessly. 3-5% higher efficiency + 30-50% lower idle consumption vs. common power-frequency units. End-to-end solar system packages (optional) – ready-to-deploy for residential/commercial projects. Pure sine wave output supports all load types with seamless auto-switching between grid/generator. Integrated bypass, solar charging, UPS, inverter, and energy management–eliminate multi-device setups.
|
Model |
HK-PV3000W |
HK-PV4000W |
HK-PV5000W |
HK-PV6000W |
HK-PV8000W |
HK-PV10000W |
HK-PV12000W |
|
|
Nominal Battery System Voltage |
12/24/48VDC |
24/48VDC |
48VDC |
|||||
|
Inverter Output |
||||||||
|
Rated Power |
3000W |
4000W |
5000W |
6000W |
8000W |
10000W |
12000W |
|
|
Surge Rating |
9000W |
12000W |
15000W |
18000W |
24000W |
30000W |
36000W |
|
|
Waveform |
Pure sine wave (grid or generator) |
|||||||
|
Output Voltage |
100/110/120/220/230/240VAC |
|||||||
|
Output Frequency |
50Hz / 60Hz ±0.3Hz |
|||||||
|
Charge Efficiency |
> 97.6% |
|||||||
|
Line Mode Efficiency |
> 95% |
|||||||
|
Power Factor |
1.0 |
|||||||
|
Typical Transfer Time |
10ms(max) |
|||||||
|
AC Input |
||||||||
|
Voltage |
100/110/120/220/230/240VAC |
|||||||
|
Frequency Range |
50Hz / 60Hz(Auto sensing) 40~80Hz |
|||||||
|
Built-in Charger |
||||||||
|
Type |
MPPT |
|||||||
|
Capacity |
50A(optional) |
60A(optional) |
60A/100A(optional) |
|||||
|
MPPT Operation Range(Vmp)@12V |
18-150VDC |
|||||||
|
MPPT Operation Range(Vmp)@24V |
34-150VDC |
|||||||
|
MPPT Operation Range(Vmp)@48V |
65-150VDC |
|||||||
|
Max Open Circuit Voltage(Voc)@12V |
170V |
|||||||
|
Max Open Circuit Voltage(Voc)@24V |
175V |
|||||||
|
Max Open Circuit Voltage(Voc)@48V |
180V |
|||||||
|
Max PV Input Power@12V |
700W |
900W |
900W |
900W |
1400W@100A |
1400W@100A |
1400W@100A |
|
|
Max PV Input Power@24V |
1400W |
1700W |
1700W |
1700W |
2600W@100A |
2600W@100A |
2600W@100A |
|
|
Max PV Input Power@48V |
2800W |
3400W |
3400W |
3400W |
5600W@100A |
5600W@100A |
5600W@100A |
|
|
Mechanical Specifications |
|
|
|
|
|
|||
|
Inverter Dimensions(W*H*D) |
|
560*420*235mm |
|
|
|
|||
|
Package Dimensions(W*H*D) |
|
620*470*310mm |
|
|
|
|||
|
Inverter Weight |
|
32kgs |
34.5kgs |
34.8kgs |
|
|
|
|
|
Package Weight |
|
39kgs |
41.5kgs |
41.8kgs |
|
|
||

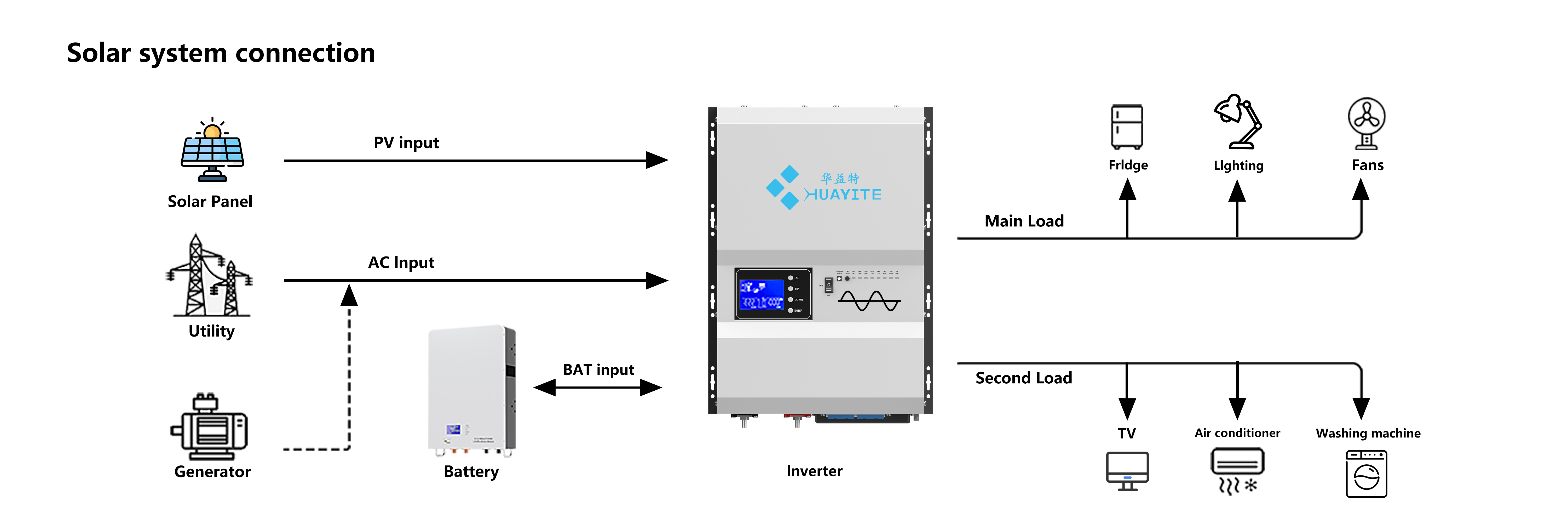

Universal Compatibility: Pure sine wave output supports all load types with seamless auto-switching between grid/generator power. 5-in-1 Hybrid Functionality: Integrated grid bypass/charging, solar charging, UPS, inverter, and energy management – eliminate multi-device setups. High-Efficiency MPPT Solar Control: Built-in 40-120A MPPT charge controller (configurable) ensures max solar yield + faster ROI. Industrial-Grade Protection: Relay + circuit breakers with multi-protection (undervoltage/overload/short-circuit/temperature) ensure system longevity. Customizable Operation: DIP-switch adjustments for battery thresholds, AC input ranges, frequency, and priority modes – adapt to regional specs effortlessly. Energy-Saving Advantage: 3-5% higher efficiency + 30-50% lower idle consumption vs. standard power-frequency units – cut operational costs. Scalable Off-Grid Solutions: End-to-end solar system packages (optional) – ready-to-deploy for residential/commercial projects.
